My Winchester 1897

Updated 04-06-2001

by AK Church


As always, click on an image to see a larger one.

(Free permission to quote Church's articles is granted, as long as proper attribution is given. We request that if you use our work, you give us credit.)

This may be the all time classic repeating shotgun. Winchester introduced the Model 1893 that year, made some revisions on the locking, and introduced the improved gun in 1897.

The '97 Winchester continued in production until 1957, and while serials of past one million exist, numbering took up where the 1893 left off. Slightly short of a million of the '97 left Connecticut. A study of serial numbers is interesting: production slowed drastically after introduction of the non-Browning designed Model 12. A good half the production of the shotgun took place before 1920.

I will go out on a limb and break production of the gun into 3 major types: 12 gauge solid frame; 12 gauge takedown; 16 gauge takedown. I see far more of the 12 gauge takedown models than any other.

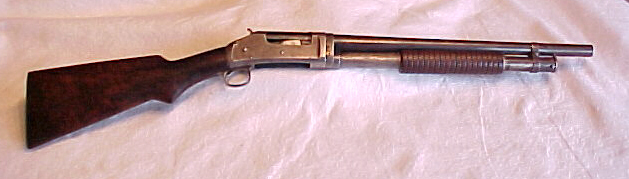

My battered í97 is an amalgamation of 2 guns. The action is primarily from a 1903 gun, including the receiver. The buttstock, barrel extension and barrel have been taken from a 1907 gun. At the time the gun was built, a few internal parts from both guns were beyond hope, so spares were installed from at least 2 other guns.

The original í07 gun was rough indeed externally, and had been used to the point the raceway guiding the bolt in the receiver was enlarged. The bolt face occasionally slipped sideways enough that the extractor hung on the ejection port. A skilled welder could build the track back up, but this old pig wasnít worth that kind of money.

I later stumbled, literally at a salvage yard, onto another gun. It was as rough externally as the first, but mechanically much tighter. The owner was looking to move it as a parter, and had grown nervous about selling it because all would be customers talked about shooting it. He believed it needed to be parted, and I bought it as such for $35 cash. It came with a straight grip stock, very appealing visually, but regrettably oil soaked beyond usage.

The two guns were detail stripped, the pieces eyeballed, measured, and the best bits were re-assembled on the í03 receiver. The vast majority of action parts are the í03 gun, the barrel, receiver extension, and wood are the í07 gun. The resulting gun has a little flex at the threads allowing the takedown, but my checkup @ Miles Fortis Gunsmithing pronounced it entirely useable. Most of the internals still displayed the lovely original bluing, and showed the superb fit and finish which nearly bankrupted Winchester in the early Ď60s. And, my, there are a lot of internal parts.

That part of the project was complete, praise be to Allah, for detailing a í97 Winchester is not for the faint of heart.

The 1907 gun came with a barrel cut from a 30" full choke to an 18 5/8" cylinder, cut by Miles' father, and quite well indeed. This shotgun throws patterns which are quite open, but wonderfully even.

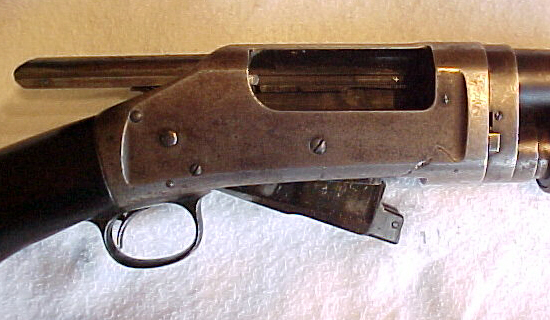

The í97 is a complex machine. A massive shell carrier slipping into a cavernous cut on the bottom of the relatively small bolt accomplishes locking.

The receiver is relatively small, and is much shorter than most modern pump shotgun receivers. This is accomplished by having most of the bolt physically outside the receiver for most of the loading cycle.

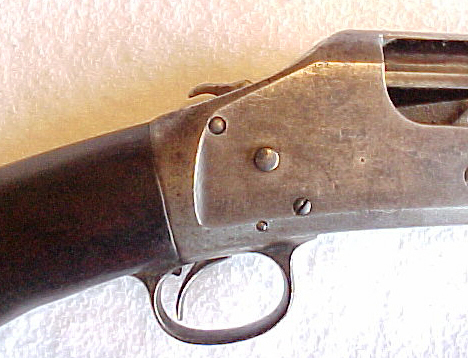

The shell carrier seen below the receiver is the locking piece in the action, and it carries the hammer, mainspring, sear and sear spring inside. It is a mammoth and complex piece of work.


The outside hammer is a touch one comes to appreciate. You can carry it with one round chambered, the hammer on half cock and thumb that hammer back in a hurry. Of course, you can flick off the safety on a tang safety gun just as fast, but somehow that big hammer sticking up there is reassuring.

Another touch, very much of its period, is the lack of a disconnector. If the trigger is held down while the action is cycled, the chambered round will fire the moment the action closes. Iíve never found a use for this feature, but there are some who love it. It shares this feature with a number of other fine pump guns: The original Winchester Model 12, earlier Ithaca 37s, and Winchester Model 42s. Iím no engineer, but I see no way a disconnector could be fitted to the í97 action. Because of the potential liability that represents, I predicted that this gun would never be reproduced but was taken aback upon seeing magazine advertisements for new specimens made by NORINCO & supposedly soon to be available for shipment to your favorite dealer.



Nothiní to cry over there, it works just fine. It feeds factory 2 ĺ" non-magnum ammo perfectly, patterns well for its purpose, and retains the stereotypically terrifying cycle sound these old actions carry. Usually this is compared to freight cars hitching, and the comparison is fair enough.

I met a man once who had covered the 1968 Democratic Convention as a reporter. During the course of the riots, he somehow got from behind the police lines to in front of them. At one point the police approached, and he watched them with their slide action shotguns (likely Ithaca Ď37s). He declares the sound of pump shotgun is the most terrifying sound in the world, and that he wishes never to hear it again. The í97 reiterates this point.

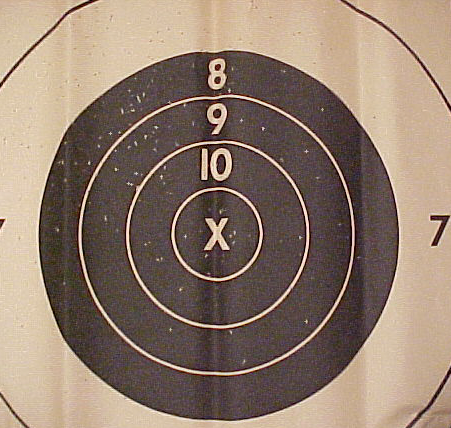

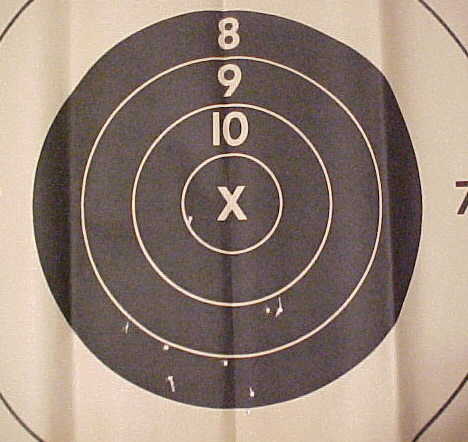

Patterns with buckshot and Wal~Mart #6 field loads are reproduced in the pictures below. Since the barrel lacks a bead aiming is accomplished using the tried & true; point at the middle and fire away.


                                          00 Buck                                                                          #6

I donít shoot the old gentleman much, mostly in deference to his age. He gets maybe 50 rounds a year run through. I also donít want to accelerate my use of original spare parts, which, with the widespread use of the gun in the Cowboy games, are becoming alarmingly scarce. I have essentially one of everything, but some parts (sears in particular) are more fragile than that. So he normally only goes out on the Fourth of July. But he does stay loaded, and is my second line house gun. Iíd have to say I trust this 97 year old.

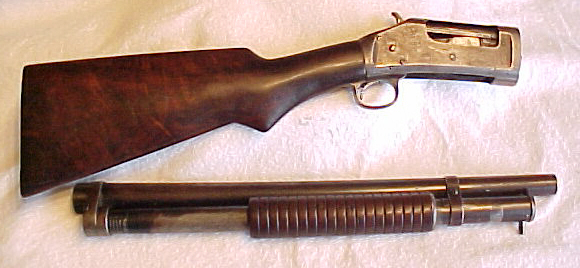

My gun is a takedown, and this is a feature I have grown to rather like. I can break it into it's 2 major subassemblies, tuck them and a towel for padding into a gym bag, and move it unobtrusively from my apartment to vehicle. The feature also has a method to adjust the fit of the assemblies

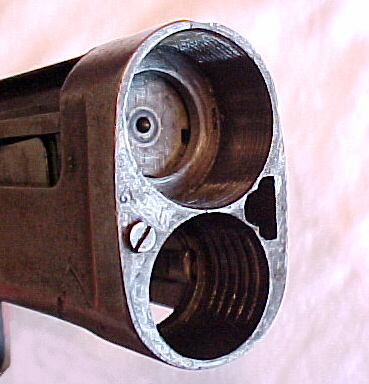

akwin97barreladjuster.JPG (161694 bytes)                akwin97receiverfront.JPG (106419 bytes)

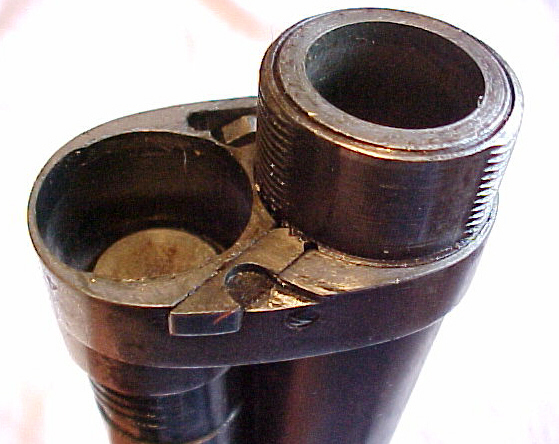

The interrupted thread at the end of the barrel can be rotated to  tighten, or loosen,  the fit of the barrel. It's held in place by a screw stopped, sliding, toothed "cog" that meshes with similar teeth on the base of threads.


(1) Cycle the action, and make certain the gun is unloaded.

Chamber and magazine should be clear.

(2) Close the action, and lower the hammer.

(3) Pull gently on the fore end to make sure it is fully forward.

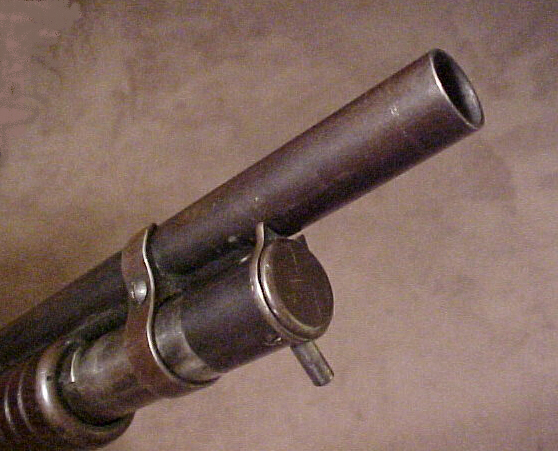

(4) At the front of the magazine tube is a large projecting pin running from approximately the 8 o'clock position over to 2 o'clock as you are (cringe) looking down the barrel. Press in on the arm of the pin at 2 o'clock to the barrel, until the head is flush with the magazine tube. Note: this pin is supposed to be captive. On my 97 year old '97, the spring which retains this is well and truly tired, and sometimes the pin chooses not to be captive. DON'T LOSE IT. '97 parts are getting to be a little scarce, since the Cowboy shooters are again shooting these things.


(5) The projecting end of the takedown pin should be rotated counter-clockwise about 90 degrees. This will rotate the entire magazine tube.


(6) Carefully pull forward on the magazine tube. It should pop forward around 2 inches. If your gun is like mine, this will expose a vestige of its original exquisite bluing.

(7) Tug gently forward on the fore end. It should come forward 'bout an inch.

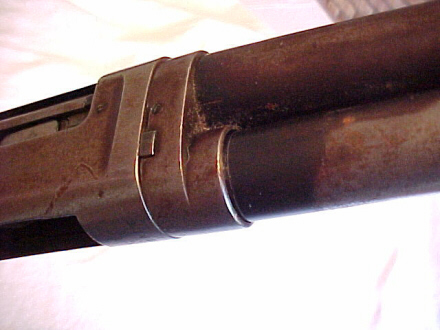

(8) Rotate the barrel about 90 degrees counter-clockwise. The receiver extension will rotate away from the front face of the receiver.


(9) Pull the barrel/magazine tube/forearm off the receiver.



For starters, don't ever ever attempt to reassemble it with the action open. Things will jam, and Miles will look at you like you're a total maroon. The cold chisel will have to come out. It will be scary.

(1) Take the barrel/magazine assembly. Make sure the forearm is pulled forward, along with the magazine.

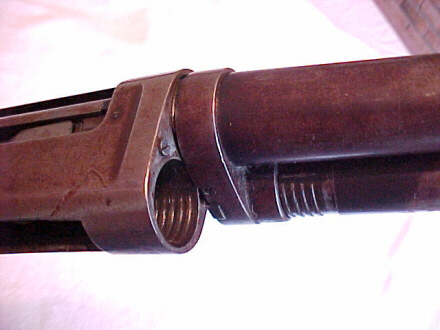

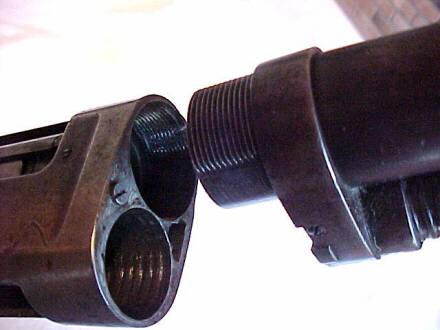

(2) Insert the barrel back into the the receiver this way: The interrupted barrel threads corresponding with the unthreaded sections of receiver. Your magazine tube will be out to the non-ejection port side of the receiver, parallel with the bolt.

(3) Rotate the assembly 90 degrees clockwise. YOU SHOULD NOT HAVE TO FORCE IT. If it's not going in, check things again. Usually, the culprit will be the tip of the action bar protruding out slightly. If so, tug forward gently on the forearm.

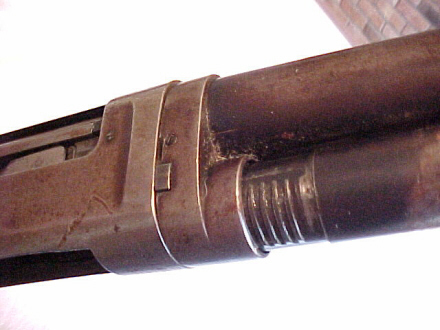

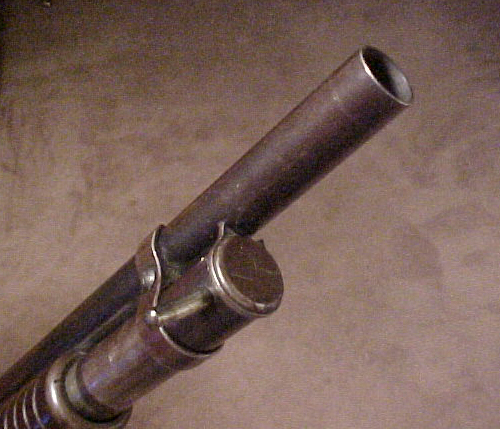

(4) The magazine tube should have its threads showing @ approximately 12:30 and 6:30 positions. Gently press back on the mag tube until you feel it fully seated. AGAIN, YOU SHOULD NOT HAVE TO FORCE IT. The magazine tube threads are cut on sheet metal, and would be easy to strip. Mine have survived since Teddy Roosevelt was President. That is because no one has forced this gun to go back together, for which I thank them.

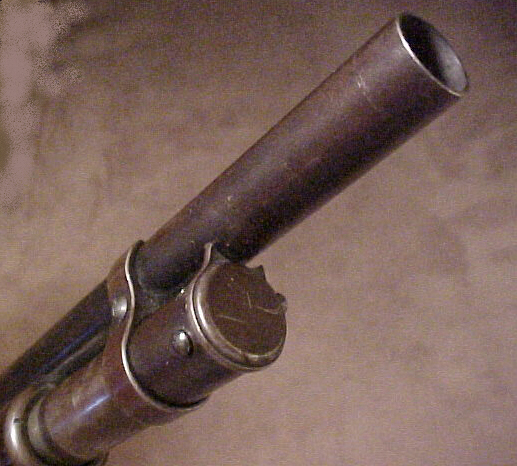

(5) Rotate the magazine pin projecting on the ejection port side up toward the muzzle until the magazine tube is firmly seated. Need I say don't force it?

(6) At this point, you should be able to rack the action, and:

Enjoy the genius that was John M. Browning. Friend Don Brady has named his pet HiPower, John Moses after this genius of men, and the '97 is an equal tribute.
